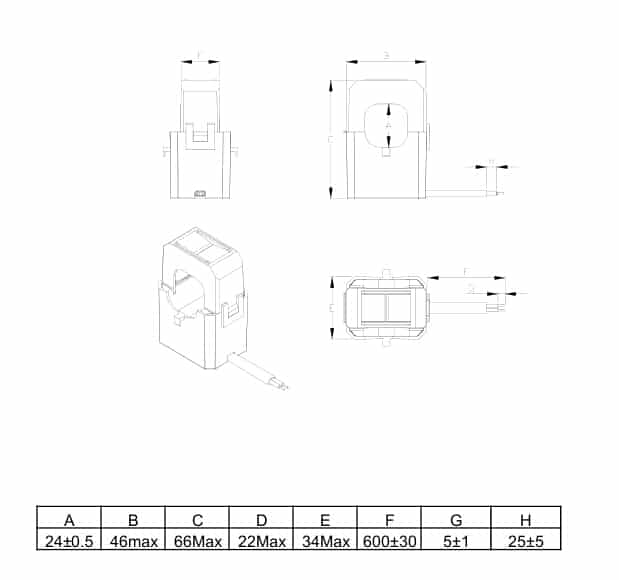

CT314 split core current transformer suppliers
Electrical Specification
(Customized is available)
| Rated Primary Current | 50A |
| Saturation current: | ≥560A |
| Rated Secondary Current | 25mA |
| Accuracy | 1.0 |
| Electrical Strength | 3000VAC 1mA60s |
| Load Resistance | 10Ω |
| DC Resistance at 20℃ | 60±6Ω |
| Linearity | 3%（50A-560A） |
Generally, split core current transformer can be flexibly switched between high voltage and low voltage, so that the device can switch back and forth under different voltages. They are nice transformers in terms of protecting equipment and user safety. It is primarily fixed by these methods.
The energy monitoring is generally the cooperative application of the electric energy meter and the transformer. In the transformation project, the electric energy meter advocates the use of a rail-type electric energy meter, which is convenient for equipment, and the current transformer is preferably considered to use an open current transformer.Open current transformers are mainly used in urban and rural power grid reconstruction projects in industry. The equipment is convenient, and there is no need to dismantle the busbar once, and it can also be operated with electricity, which does not affect the normal electricity consumption of customers, saves manpower, material resources and financial resources for user reconstruction projects, and improves efficiency. This series of current transformers can be used with relay protection, measurement and metering equipment.
Precautions:
- Before opening the current transformer device, it should be connected to the meter (or other measuring equipment) twice to ensure that the transformer is not open circuit twice;
- Place all open current transformers connected to the secondary line on the site and wait for the equipment;
- If the primary busbar on site is a cable, live equipment can be carried out; if the primary busbar is a copper busbar, the live operation will make it difficult for the operator to require a relatively high level of proficiency and good insulation protection methods;
- When installing the transformer, foreign objects such as impurities and dust should not fall into the cut surface of the iron core to avoid affecting the performance of the transformer.
| Item | Max Primary Current(A) | Turns Ratio | Linearity | Load resistance Ω | Frequency Hz | Dimensions (mm) | ||
|---|---|---|---|---|---|---|---|---|
| Click PN For Details | Windows | ID | HT | |||||
CT312 | 80 | 500~5000:1 | 0.5~3% | 20 | 50/60 | 25*27.5 | 10 | 42.5 |
CT313 | 200 | 500~5000:1 | 0.5~3% | 20 | 50/60 | 22.2*32.5 | 16 | 43.5 |
CT314 | 250 | 500~5000:1 | 0.5~3% | 20 | 50/60 | 34*46 | 24 | 66 |
CT304 | 20 | 500~5000:1 | 0.5~3% | 20 | 50/60 | 16*26.4 | 6 | 32 |
CT315 | 400 | 500~5000:1 | 0.5~3% | 20 | 50/60 | 40.5*48 | 36 | 84.8 |
CT332 | 480 | 500~5000:1 | 0.5~3% | 10 | 50/60 | 95*96 | 45 | 96 |
