PCT215 Precision current transformer company

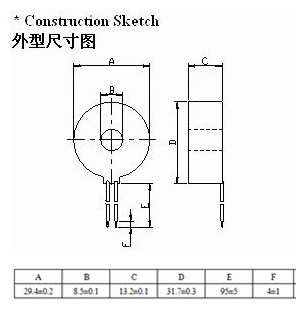

Electrical Specification

(Customized is available)

Rated Primary Current20A
Max Primary Current60A
Rated Secondary Current20mA
Accuracy0.1~2.0
Electrical Strength3000VAC 1mA60s
Load Resistance20Ω
Rated Frequency50/60HZ

The working principle of current transformer and the transformer is the same. Both work with the principle of the magnetic effect of current. The role of the transformer is to convert one level of voltage into another level of the same frequency voltage. It only has the completed voltage The conversion of output cannot complete the conversion of output power. The transformer is divided into a voltage transformer and a current transformer.

The role of the voltage transformer is to supply voltages such as detection instruments and relays, and then accurately reflect the various operating conditions of the primary electrical system. Isolate the secondary electrical systems such as testing instruments and relays from the primary electrical system to ensure the safety of workers and secondary machinery and equipment, and convert the high voltage of the primary electrical system into a low voltage value of the same standard (100 V, 100 /1.732 volts, 100 /3 volts).

The role of power transformers is basically the same as that of voltage transformers. The difference is that current transformers convert a large current in the electrical system into a standard 5 A or 1 A. Supply the relay to detect the current coil of the instrument.

ItemRated Current(A)Current RatioAccuracy ClassLoad Resistance ΩFrequency HzDimensions (mm)
Click PN For DetailsIDODHT
PCT21550500~3500:10.1~2%3050/608.52913.2
PCT21660500~3500:10.1~2%3050/608.629.213
PCT52720500~3500:10.1~2%4050/607.6188
PCT53125500~3500:10.1~2%1050/60--15.5
PCT70160500~3500:10.1~2%2050/60723.411
PCT70280500~3500:10.1~2%3050/608.726.417
PCT703130500~3500:10.1~2%5050/6012.837.214
PCT70460500~3500:10.1~2%1050/60824.211.8
PCT71010500~3500:10.1~2%3050/6082411.8
PCT80150500~3500:10.1~2%10050/60284517.2
PCT802100500~3500:10.1~2%4050/603533.529.2
PCT82220500~3500:10.1~2%5050/6021318
PCT83150500~3500:10.1~2%3050/6010.623.913.6
PCT832100500~3500:10.1~2%2050/6012.626.114.6
PCT842100500~3500:10.1~2%10050/607.52217.5
PCT84310500~3500:10.1~2%4050/601831.523
PCT901180500~3500:10.1~2%2050/6018.55020
