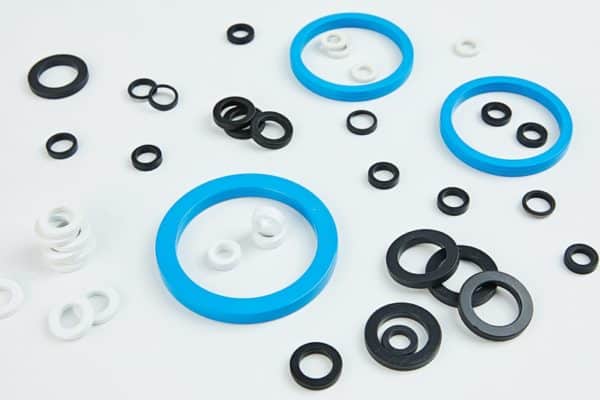

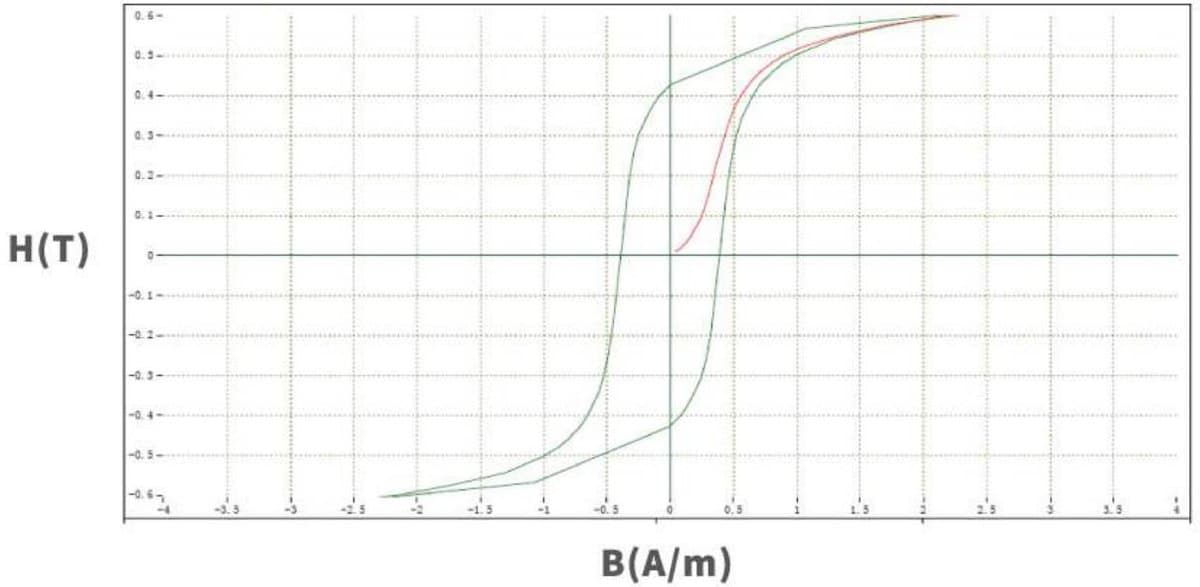

High initial permeability
High saturation flux density
Low iron losses
Excellent temperature stabilily

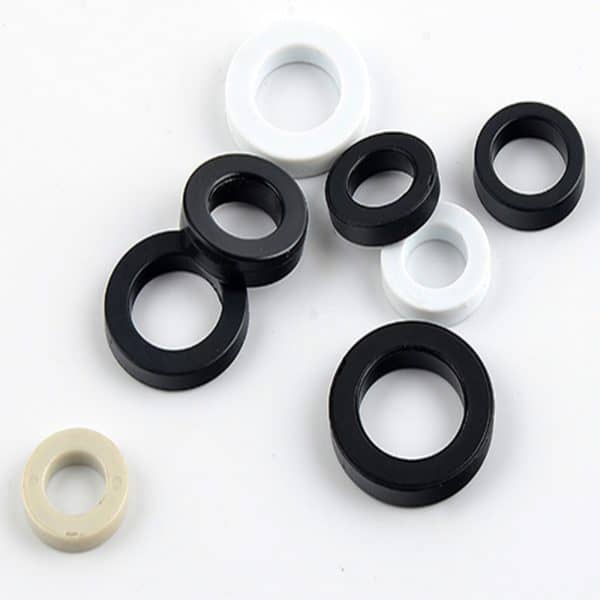

| Rated Frequency | 50/60 Hz |
|---|---|
| DC Resistance at 25℃ | 2.5KV/1mA/1min |
| Operate Temperature | -35-70℃ 0～80%RH |
| Item | Core material | Output voltage lin=25mA 1:1 | Over leakage characterstics | Temperature Characteristics -35~80℃ | Dimensions (mm) | Core size(mm) | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| ID | OD | HT | ID | OD | HT | |||||
| HP1201P | Permalloy IJ85 | ≥0.08mV | -10%~0% | 0.4mVmax | 7.8 | 13.5 | 2.9 | 8.8 | 12.2 | 0.35X5 |
| HP1301P | Permalloy IJ85 | ≥0.06mV | -10%~0% | 0.4mVmax | 8.8 | 14.9 | 3.2 | 9.8 | 13.4 | 0.35X5 |
| HP1801P | Permalloy IJ85 | ≥0.05mV | -10%~0% | 0.4mVmax | 11.5 | 19.5 | 3.4 | 13 | 17.5 | 0.35X5 |
| HP1501P | Permalloy IJ85 | ≥0.06mV | -10%~0% | 0.4mVmax | 9.6 | 16.6 | 4.2 | 11 | 15 | 0.35X5 |
| HP2902P | Permalloy IJ85 | ≥0.05mV | -10%~0% | 0.4mVmax | 20.7 | 31.2 | 3.4 | 22.1 | 29.6 | 0.35X7 |
We have well educated engineers collaborate with rich experienced technican dedicating to project developing and problem solving. Providing professional advice for split core current sensor, differential current transformer mechanical design, electrical parmeters setting for EV charging solution, energy monitor system application.
Our plant covers 20,000 square meters holding more than 300 well skilled workers and hundreds winding machines and testing instruments with automated equipments. We are pleasure to meet your requirments at different stages of project, small lot and bulk orders are all available for manufacturing.
As current transformers are kinds of critical components used for electrical safety devices, we highly value quality in the whole process. By doing 100% incoming and outcoming inspection, customers are satisfied with our strict quality control.
If some special materials are needed, the lead time also depends on suppliers’ lead time. If toolings are required, the samples can only be made after tooling finished.
Deponds on shipping distance, courier delivery around 2~5 days, Air shipping 3~7 days, Sea shipping 7~40 days. We can choose a best way by considering products’weight,urgency of need and commodities value.
For the regular items, if there is stock, we can ship few pieces for your testing in 1~2 days. If not, we need to prepare samples in 3~4 days.
The lead time depends on the material and production time frame and the order quantity. Generally, the materials lead time 1~2 weeks, production time 2~3 weeks.
To Discuss Your Need Of Current Transformers For Electric Metering Or Electrical Safety. Tailor Made Products And Customized Solutions Are Welcome.
